MasterPipe® Compact Profiler - A CNC Plasma Pipe Cutting and Profiling Machine
MasterPipe® Compact Profiler - A Powerful CNC Plasma Pipe Cutting and Profiling Machine for Construction and Mechanical Contractors
Accurate Pipe Cutting in a Small Footprint - A Superb Solution for Small Pipe and Tube Cutting
An Economical CNC Pipe Cutting Machine - Built to Last - Ideal for Small Diameter Pipe Cutting in the Construction and Mechanical Contractor Environments

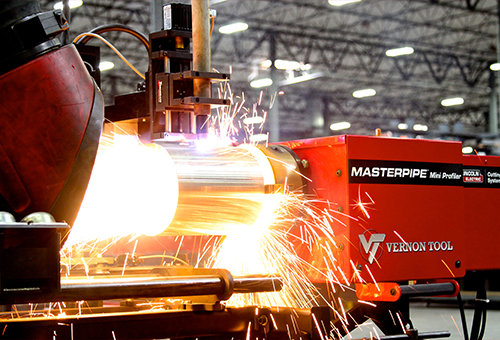

The MASTERPIPE® Compact Profiler by Lincoln Electric® is an economical CNC pipe cutting solution that comes in a compact footprint. It can handle pipes with outside diameters between 2 and 8 inches, with an optional accessory that expands the capacity to hold one inch O.D. pipe. This machine is ideal for roll cage fabrication shops, handrail and fencing manufacturers, and many other small-to-medium-sized fabrication shops that are looking to increase the efficiency of profiling and cutting their pipes and tubes. This two-axis CNC pipe cutting machine has a footprint of only two feet wide and can rapidly profile aluminum, stainless steel, and mild steel pipes with ease.
Features like a floating 3-jaw chuck and a maximum cut speed of 200 ipm can reduce cycle times in both material loading and plasma torch pipe profiling. Five-foot expansions grow the machine to accommodate pipes and tubes up to 24-feet long.
User Friendly Pipe Profiling Technology
The powerful combination of Lincoln Electric’s ACCUMOVE motion control technology and the user-friendly interface of Visual Machine Designer (VMD) will provide effective and easy-to-use CNC pipe profiling technology to all users. Shops with multiple operators will find that the highly intuitive software is easy to teach, yet powerful enough to handle your most demanding cuts. Our proprietary WinMPM pipe design software is embedded on the machine’s computer and can be used to program pipe profiles from the pre-loaded library.
The MASTERPIPE Compact Profiler pairs a powerful gear train with a linear guidance system to ensure fluid motion. It also uses a variable-angle torch arm that enables the machine to cut at bevel angles between 0 and 45°. This feature is ideal for shops that need to weld prep their pipes. The standard Arc Voltage Height Control (AVHC) reads the arc voltage throughout the cut to compensate for pipes and tubes that are out of round.
Sample Voltage - For Accurate Cuts, Every Time
This can make a big difference when cutting imperfect pipes. Users can activate the “Sample Voltage” feature with the press of a single button on the touch-friendly VMD interface. This feature reads the arc voltage at the pre-programmed cut height for the first ½” of the cut and assigns that highly accurate reading for the duration of the cut. This standardizes the varying arc voltage readings that become skewed from a multitude of factors that are unique to every shop.
Each feature on this machine has been engineered to increase efficiency, standardize cut quality, and expand the capabilities of your business. Please give one of our CNC pipe profiling professionals a call today! They’ll be happy to talk with you about your applications and how the machine can improve your processes. Call us today at 775-673-2200
Watch the Video Below to See Cut Samples from the MasterPipe Compact Profiler!
Machine Specifications

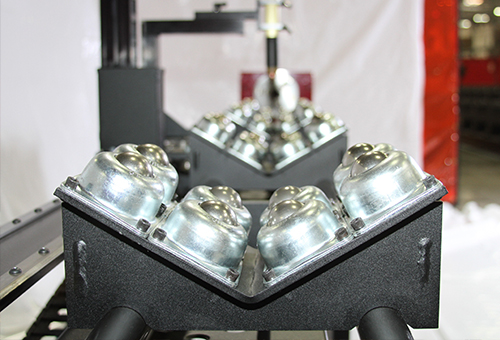

| Input Power | 120V/1Ph/60Hz (machine) 200-600V/1Ph-3Ph/50-60Hz (plasma) |
| Traverse Speed | 200 ipm (5.08m/min max) |
| Pipe Capacity |
Production capacity: 1-8in (2.5-20.3cm) 1 inch to 2 inch OD pipe cutting requires an |
| Weight Capacity | Maximum total weight: 1,000 lbs (453.6 kg) Maximum weight per foot: 100 lbs |

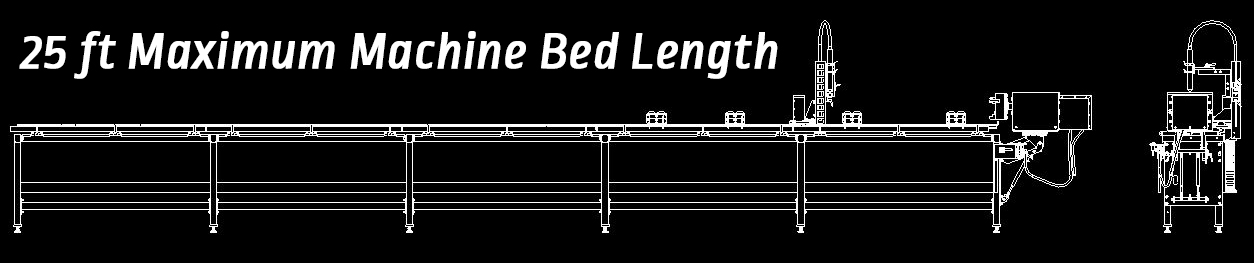

| Travel - Longitudinal | 24ft (7.32m) |
| Maximum Cutting Speed | 200 ipm - limited by cutting process (5.08 m/min) |
| Bevel Angle | 0-45° manual bevel |
| Pipe Rotation Drive | Precision planetary gear box and belt drive< |
| Linear Motion | Precision rack and pinion |
| Cutting Process | Plasma |
| Temperature (operating) | 40-100°F (1-38° C) |
| Pierce Capacity |
FlexCut 80: 0.75 in. |
| Fume Extraction | Custom quotes available upon request |
Types of Cuts
- Straight
- Saddle
- Multi-Miters
- Tee
- Lateral
- Multi-saddles
- Gusset slots
- Double miter
- Elbow support
- Pipe to cone
- Reinforcing pad
- Bumpers
- Overlaps
Brochure Download
Software Capabilities - PypeServer Software Now Available with the MasterPipe Compact Profiler
Reduce Cost and Cut Parts Quicker
• Reduce the costs of pipe fitting, grinding and filling by cutting parts more accurately. PypeServer provides actual CNC cut-paths that account for cutter kerf, plasma beam divergence, custom bevels, root gap offsets, torch swirl direction, lead-ins, lead-outs and pierce angles.
• Eliminate paper parts lists with PypeServer’s spool importing and job planning that schedules and tracks every part through cutting.
• Easily update change orders and track jobs by knowing what has been cut - and when.
• Save hours by nesting parts right at the machine, where operators maximize pipe use and quickly respond to welders’ needs.
• Optional: Uniquely label parts with CAD Design IDS, pipe heat numbers, QR codes, customer, job, and spool number.
Cut, Label and Track
• Increase machine output by cutting entire nestings without operator intervention
• Make accurate cuts with powerful PypeServer NC machine control
• Automatically track cut and job completion
Automatically Nest on Pipe
• Easily nest at the machine
• Automatically nest from a scheduled list
• Nest on drops
Design Parts, Manage Jobs
• Plan and manage all your jobs in one place
• Design parts in 3D without CAD expertise
Import Spools from CAD
• Reduce machine programming and eliminate costly mistakes
• Link parts to CAD designs and easily re-import changes
Build Faster
• Grind, fill and prep less with accurate cuts
• Get the parts welders need - now
• Scan labels to find spool drawings
File Importing
• WinMPM
• STEP
• GTP Stratus
• COMPRESS
• ShipConstructor
• Tekla
• Acorn
• DSTV
• PCF
• IFC
• SysQue/CSV
What’s Included:
• One remote seat
• WinMPM File Importer
• One additional CAD importer
• Kiosk + CPU
• One Year Annual Subscription*
*Requires annual subscription. First year included with sale of machine.
